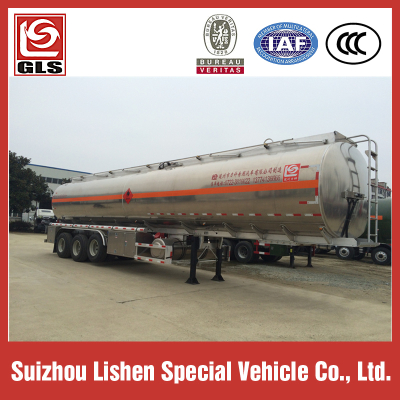

ALUMINUMN FUELTANKER 45000L

TECHNICALSPECIFICATION

GENERAL:

Thetank trailer is designed for stevedoring and transporting fuel. Workingpressure is 75psi, testing pressure is 1.5 times of working pressure.

Transportmedium:

Fuelwith density between 0.74KG/L~0.87KG/L

Dimension(mm):

External(lengthx width x height)(mm): 11400x2480x1910mm

This tank’s size canbe put in container which size is 12000x2440x2900mm(40HQ container)

FifthWheel Height(unload):

Kingpin height: 13000mm

King Pin Setting(kingpin to front end): 10500mm

Wheel Distance (kingpin to second axle): 73700mm

Axle space: 1360mm

Landing Gear location(from the king pin): 2300mm

Weight(KG):

Tareweight(tolerance±3%) 6700KG

Maximumpayload(light fuel for planes): 30.240KG

MaximumGross weight: 36.940KG

MaximumKingpin Payload(distributed payload): 11500KG

MaximumAxle Payload(distributed payload): 15440KG

Tank Body:

Capacity: 42㎡±vapor volume

compartments: single

shape of tank: Cylinder,Variable cross-section

Tank material: Aluminum alloy 5454 conforming ADR,Min shell thickness 6mm

Dish ends and bulkhead: Aluminum 5454 conforming ADR,Min shell thickness 6mm

Baffle Material: Aluminum 5454 conforming ADR, Min shell thickness 6mm

TankAccessories and fittings:

Manhole:

Two20" diameter manholes with 20” EMCO manhole cover, 10" fill/vent,pressure vacuum vent and emergency vent included in manhole assembly.Protecting cover for manhole is provided.

DischargeSystem ：

Bottom loading &gravity discharge system:

1.Foot Valve: two 4" “EMCO” pneumatic foot valve on the bottom of thetanker. One is in the front/middle of tank; the other is at the rear of tank.

2.4” aluminum alloy pipe line, outlet located at the middle of tank, right, withsight glass.

3.Two 4" “EMCO” API adapter withaluminum dust cap on the right side of tanker (Horizontal installation).

4.The API adapters are to be fitted at a height of between 705mm and 850mm.

5.All outlets are in the aluminum alloy box.

6.Outlets box equipped with sliding door and sealing opening.

7.Trailer brake to be applied when bottom loading valves are on operation

Vapor RecoverySystem:

1.Two conforming API RP1004.

2. 3” aluminum alloypipe line from the first manhole to the middle bottom of the tank.

3.One “EMCO” vapor recovery adaptor Installed at the middle

bottomof the tank.

Overfill ProtectSystem:

“DIXON”5 wire optic overfill prevent system conforming API

RP1004

One5 wire optic probe installed to manhole cover.

One6 pin, 3J slot socket to be installed near vapor recovery adapter.

Dip Gauge ：

Dipgauge with scale relevant to the volume. Dip gauge are covered and protected toavoid theft. Yangzhou bureau of weights and measures standard.

Under70%: No measurement

70%‐85%: Measure for each 300L

85%‐100%: Measure for each 100L

100%capacity: 42,000L.

Axle& Suspension:

BPW9t drum brake axle with air suspension, Tri‐axle, the front axle can be lift.Auto slack adjuster.

Tire& Rim:

Tire:385/65 R 22.5x7. HANKOOK TH22. (selection fitting)

Rim:11.75R22.5x7, ALCOA. (selection fitting)

Braking System:

‘WABCO’ twin lines air brake system, with 4S/2M ABS.

‘HALDEX’ 30/30 type brake chambers on rear axle,

30 type on front two axles. Air tank and tubes are made in China.

Landing Gear:

“JOST” two speed with sand shoe, model: A400.

King Pin:

“JOST” 2 inches diameter, bolt‐on, model: KZ1010.

Painting:

Aluminum surface no painting, shiny finish, steel surfacesilver gray paint.

Electrical System:

ADR approved lightning and electric system

24 volt lighting system with LED lights at both sides and rear of the tanker.

Harness: oil and vapor proof cable;

Side clearance/marker light: five PCS each side, amber;

Tail light (include stop light, rear turn light and marker light): onepc/side, red/ amber;

License light: one pc, white.

Accessories:

1. Ladder: A detachable ladder isequipped in the rear of the tanker

made of aluminum

2. Walkway: Anti‐skid aluminum walkway along the entire length of the tanker

3. Fire Extinguisher Box: Two boxes are fixed on the left and right sideof the trailer made of steel

4. Fire Extinguisher: Four Pieces

5. Fender: Mudguard with mud flaps

6. Spare Tire Carrier: Equipped one sets per trailer made of steel

7. Tool Box: Equipped one sets per trailer, on the left side made of aluminum

8. Water Tank: Equipped one, plastic material, 50l.

9.Side guard: Made of Aluminum, 2pcs/side

10.Drainage tube: Made of Aluminum, on rear tank.
