- Size: 101.2
- Place of Origin: Hubei,China
- Brand Name: SLS
- Model Number: SLS5314GYY
- Weight: 14800.000 kg

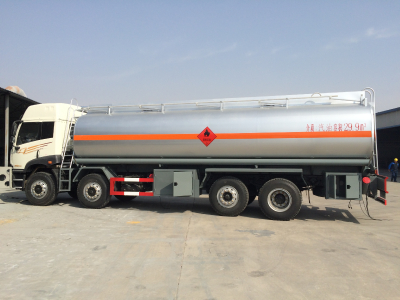

SLS5314GYY FUEL TRUCK HOWO TRUCK CHASSIS 336HP 8X4 30KL-35KL
1,transport oil truck, just tank manhole, foot valve pipeline system, API Loading valve
2, Refueling truck add refueling system ( oil pump, Nc tanker, flow meter, refueling reel, refueling gun)
3, tank material: Carbon steel, optional Aluminum alloy 5081
4, we can optional different brand of Truck chassis, sinotruk, Dongfeng, FAW,FotonDaimler,JAC, and so on
5, Divide different size compartment, or same compartment, transport different oil (petrol, diesel, Alcohol)
Item | Unit | Description |
Vehicle | Vehicle model | SLS5314GYYZ3 fuel tanker |
Chassis model | ZZ1317N4667W | |
Overall dimensions（mm） | 11900x2500x3400 | |
Up-parts | Tank dimensions（mm） | 9000x2480x1700 |
Tank description | Carbon steel,1 compartment, Optional tank material Aluminum 5083 | |
Standard equipment | One compartment, Manhole, pneumatic bottom valve, Ball valve. Rear ladder, top walkway and so on | |
Optional equipment | Refueling system(oil pump, oil reel, oil Gun, flow-meter or Nc tanker) | |
Chassis | Cab | SINOTRUK HW 76,Single sleep bed |
Allowable passengers in cab | 2 | |
Air conditioner | YES | |
GVW（kg） | 31000 | |
Max loading capacity (L) | 35000 | |
Mass in working order | 14800 | |
Wheel base（mm） | 1800 4600 1350 | |
F/R track base（mm） | 2041/1830 | |
F/R overhang（mm） | 1500/2650 | |
Approach/Departure angle（°） | 15/16 | |
Number of axles and type | 4, ST16, HF7 | |
F/R axle-load（kg） | 7000/7000/13000/13000 | |
Spring plate | 14/13,14/13 11/12 | |
Tire specification&quantity | 12.00R22.5 | |
Braking system | Drum type | |
Electric system | 24V | |
Traction system | 8x4 drive | |
Engine | Engine model | WD615.69 |
Exhaust/output（ml/kw） | 9726/247 | |
Max Horse power @ torque | 336hp@1350N.m | |
Engine Manufacturer | CNHTC (CHINA NATIONAL HEAVY TRUCK) | |
Emission standard | EURO 2 | |
Type | Inline 6 cylinder, water cooled,4 stroke | |
Transmission | HW19710 ( 10F 2 R) | |
Max speed（Km/h） | 95 | |
Type of fuel | Diesel | |
Production cycle | 1-10 sets within 35 days | |
FOB shanghai | USD/SET, (Optional Equipment and Tank Material will more cost) | |
