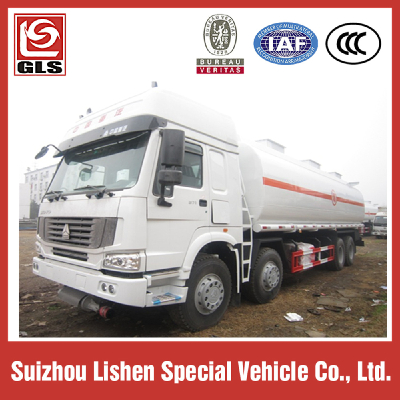

SLS5252GYY FUEL TRUCK FUEL TANKER HOWO TRUCK CHASSIS 290HP EURO 2 DIESEL ENGINE
6X4 DRIVE LEFT HAND DRIVE OR RIGHT HAND DRIVE
TANK CAPACITY 22KL-25KL
1,transport oil truck, just tank manhole, foot valve pipeline system, API Loading valve
2, Refueling truck add refueling system ( oil pump, Nc tanker, flow meter, refueling reel, refueling gun)
3, tank material: Carbon steel, optional Aluminum alloy 5081, Stainless steel 304 316
4, we can optional different brand of Truck chassis, sinotruk, Dongfeng, FAW,FotonDaimler,JAC, and so on
5, Divide different size compartment, or same compartment, transport different oil (petrol, diesel, Alcohol)
Item | Unit | Description |
Vehicle | Vehicle model | SLS5252GYYZ3 fuel tanker |
Chassis model | ZZ1257M4641W | |
Overall dimensions ( mm ) | 10200x2495x3300 | |
Up-parts | Tank dimensions ( mm ) | 7200x2400x1680 |
Tank description | Carbon steel,1 compartment, Optional tank material Aluminum 5083 | |
Standard equipment | One compartment, Manhole, pneumatic bottom valve, Ball valve. Rear ladder, top walkway and so on | |
Optional equipment | Refueling system(Oil pump,oil reel, oil Gun, flow-meter or Nc tanker) | |
Chassis | Cab | SINOTRUK HW 76,Single sleep bed |
Allowable passengers in cab | 2 | |
Air conditioner | YES | |
GVW ( kg ) | 26000 | |
Max loading capacity (L) | 25000 | |
Mass in working order | 11800 | |
Wheel base ( mm ) | 4600+1350
| |
F/R track base ( mm ) | 2041/1830 | |
F/R overhang ( mm ) | 1500/2750 | |
Approach/Departure angle ( ° ) | 15/16 | |
Number of axles | 3, ST16, HF7 | |
F/R axle-load ( kg ) | 7000/13000/13000 | |
Spring plate | 10/12,4/12 | |
Tire specification&quantity | 12.00R22.5 | |
Braking system | Drum type | |
Electric system | 24V | |
Traction system | 6x4 drive | |
Engine | Engine model | WD615.87 |
Exhaust/output ( ml/kw ) | 9726/213 | |
Max Horse power @ torque | 290hp at 1160N.m | |
Engine Manufacturer | CNHTC ( CHINA NATIONAL HEAVY TRUCK) | |
Emission standard | EURO 2 | |
Type | Inline 6 cylinder, water cooled,4 stroke | |
Transmission | HW13710 ( 10F 2 R) | |
Max speed ( Km/h ) | 95 | |
Type of fuel | Diesel | |
Production cycle | 1-10 sets for right hand drive within 30 work days | |
FOB shanghai | 45800USD/SET, (Optional Equipment and Tank Material will more cost) |
Suizhou lishen special vehicle co., ltd is a professional vehicle manufacturer in China for many more than 15 years, Registered trade mark is 'Awakening Lion" and vehicle code is "SLS"
The major products of the company are special vehicles involving six catalogs, namely petrochemical transport vehicles, oilfield vehicles, bulk powder vehicle, Sanitation vehicles, Engineering vehicles and Container carrying vehicles
The company has right of import and export, we have twenty offices and after sale service network in China, part of our products are sold to south Asia, Middle Asia, Middle East, Africa and South America. our products quality and service won praise from Customer both at home and abroad.
FAQ
Q: How many trucks does your factory produce per years?
A:Almost 2500 units
Q: How do you control the quality of product?
A:Our Factory is standard production workshop, got CCC and BV Certification, our workers are well trained. Our very product under goes a scrutinizing inspection process.
Q: How about your product After-sales service system?
A:Our main export country have accepted after-sales service, some of country used the third department service.
Q: Do you accept Custom orders? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 set.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q: How about your shipment?
A:Small one put into container, bigger one By Ro-Ro ship, Bulk ship,or 40FR.
Q:Which country do you have exported to?
A:We have exporter to many countries, such as Albania,Algeria,Angola,Afghanistan,Cango,Cameroon,Chile,Cuba,Guinea,Indonesia,Iran,Iraq,Jamaica,Jordan,Kenya,Kuwait,Kazakhstan,Uzbekistan,Tajikistan,Turkmenistan,Laos,Libya,Malaysia,Maldives,Mexico,Morocco,Myanmar,Mongolia,New Zealand, Nigeria, Peru, Philippines, Qatar, Saudi Arabia, Singapore, Sudan, South Sudan, Tanzania, Thailand, Togo, Tunisia, Venezuela, Zambia etc.
